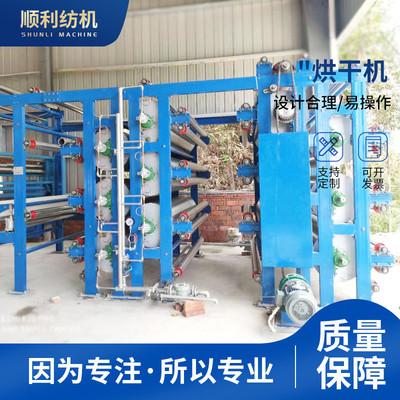

Fully Automatic Fabric Dryer Machines For Textile Profession 2200--2300mm Width

Normal drying systems are as follows:
The water content of the fiber is initially reduced by either centrifugal extraction or by mangling before evaporative drying. The evaporative drying is done by using dry and/or hot moving air.
The water content in hanks is initially reduced by using centrifugal extraction followed by evaporative drying.
The drying of cheeses after wet processing is normally carried out by centrifugal extraction followed by radio frequency drying (RFD).
The drying of yarn sheet after drying is done normally by using drying cylinders. In some cases, it is coupled with hot air drying or infrared drying.
The fabric drying in rope form is done by using mangle squeezing followed by blowing hot dry air.
The fabric in open width is dried by using a chain of drying cylinders or by using hot air drying after initial squeezing by mangles.

Specification

Width: 2200--2300mm.
Features: with a hard soft brush or scraping box in addition to impurities, impurity removal effect, the fabric humidity drying uniform and stable, stretch effect of the effect of obvious varieties.
Installed power: 7.5 ~ 12.5KW
Product use: the corduroy fabric scraping scraping, round brush, drying drum baking treatment. So that the door of the light bulb shrink to the process requirements, while the cloth cleaning process.
Model and specifications: SL / 230 nominal width 2200mm
Product Dimensions: 15000 × 3400 × 3600 (mm)
Speed: 10 ~ 50m / min (frequency control)
Drying tube steam pressure: ≤ 0.2Mpa
Installed power: 10 ~ 22KW
To wet moisture: 12 ~ 18%
Falling moisture regain: 4 ~ 6%
Main features: The machine supports the movement of the various components of the bracket are by the vertical and horizontal steel beam bolted, simple structure, the entire part of the machine easy to adjust maintenance and disassembly. The machine to the wet box has a steam chamber baking water pipes, respectively, from the role of insulation and catchment. The main drive motor of the machine is driven by the transmission gear to rotate the cylinder. In addition to drying fabrics, but also from the cloth and take the cloth door width of the use. This machine is equipped with impurity removal mechanism, increase the clearance of cotton cloth heteroaryl effect.

Welcome to consult

Product Catalogue

FAQ

Q1. Are you trading company or manufacturer?
We are factory. The company is located in Lijia Town, Wujin District, Changzhou City, Jiangsu Province, China.

Q2. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.

Q3. Why choose us?
1.Professional Advice and Product Knowledge

2.Prompt Reply for Quotion and other questions

3.Specific Guarantee and Best after service

Q4. Do you inspect the finished products?
Yes, each step of production and finished products will be came out inspection by QC department before shipping.

Q5. What products do you have?
Corduroy Cutting Machine, Textile Singeing Machine,Textile Dryer Machine,Fabric Inspection Machine,Fabric Inspection And Rolling Machine,Fabric Brushing Machine,Fabric Folding Machine, etc.

Q6. What is the order process?
Inquiry - Communication - Quotation - Order confirmation - Payment - Production - Test and commissioning - Packaging - Delivery - Customer reception - After-sales service.

Q7. How about your warranty?
Generally,our warranty is one years. Within the warranty period, we can offer technique support.

Q8. What mode of transportation do you use?
We generally use the mode of sea transportation. If you have any special requirements, you can contact us for discussion.

Q9. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines

according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.

Q10. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Changzhou Schneter Textile Machinery CO.,LTD Factory is a company specializing in the production and processing of Corduroy cutting machines, cloth drying machines, horizontal brushing machines, vertical brushing machines, electric heating singeing machines and other products. It has a complete and scientific quality management system. At the same time, the company has a relatively stable technical team, excellent hardware and software to ensure the technical requirements of customers, high quality, low price and fast delivery.

With the four principles of "quality assurance, service assurance and customer protection", the company welcomes the society, new and old customers to cooperate hand in hand.

The integrity, strength and product quality of Changzhou Schneter Textile Machinery CO.,LTD Factory in Wujin District have been recognized by the industry. Welcome friends from all walks of life to visit, guide and negotiate business.
